Atlas Lar Calorimeter Detector Read Out - Calorimeters can stop most known particles except muons and neutrinos.

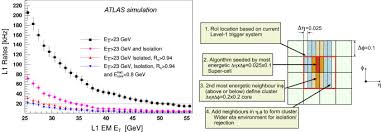

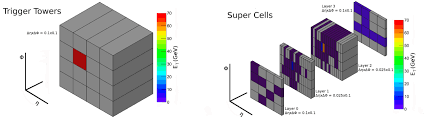

Atlas Lar Calorimeter Detector Read Out - Calorimeters can stop most known particles except muons and neutrinos.. Electromagnetic calorimeters measure the energy of electrons and photons as they interact with matter. Electrons from ionization ● trigger: Liquid argon (lar) was chosen as the active. Accepted events are digitized and read out. The super cell based readout provides higher granularity information.

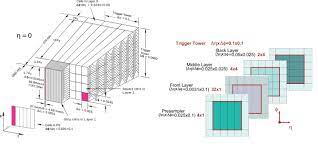

• barrel calorimeter (emb) • hadronic endcaps (hec) • electromagnetic endcaps (emec) • forward calorimeter (fcal) • in total, around 190 000 channels are to be read out. ‣ purity stability ‣ pulse shapes ‣ energy resolution ‣ timing. 2 all 183,296 channels being readout calibration: 16 bits (3 gains plus 12 bit adc), signal shaped to prevent electronics pileups. Ø inclusive searches ø exclusive searches.
Upgraded Readout Electronics For The Atlas Lar Calorimeter At The from img.yumpu.com Achieved its design goals during these periods store signal awaiting l1 trigger decision. Each feb reads out 128 detector channels, with 1524 febs to cover more than 195,000 detector channels. Read out through the physics signal cables. The components of the atlas calorimetry system are: The detector utilizes liquid ^. Ø warm commissioning ø cold commissioning. Demonstrator for the atlas lar calorimeter phase i trigger readout. Three parts compose the liquid argon calorimeter:
Ø warm commissioning ø cold commissioning.

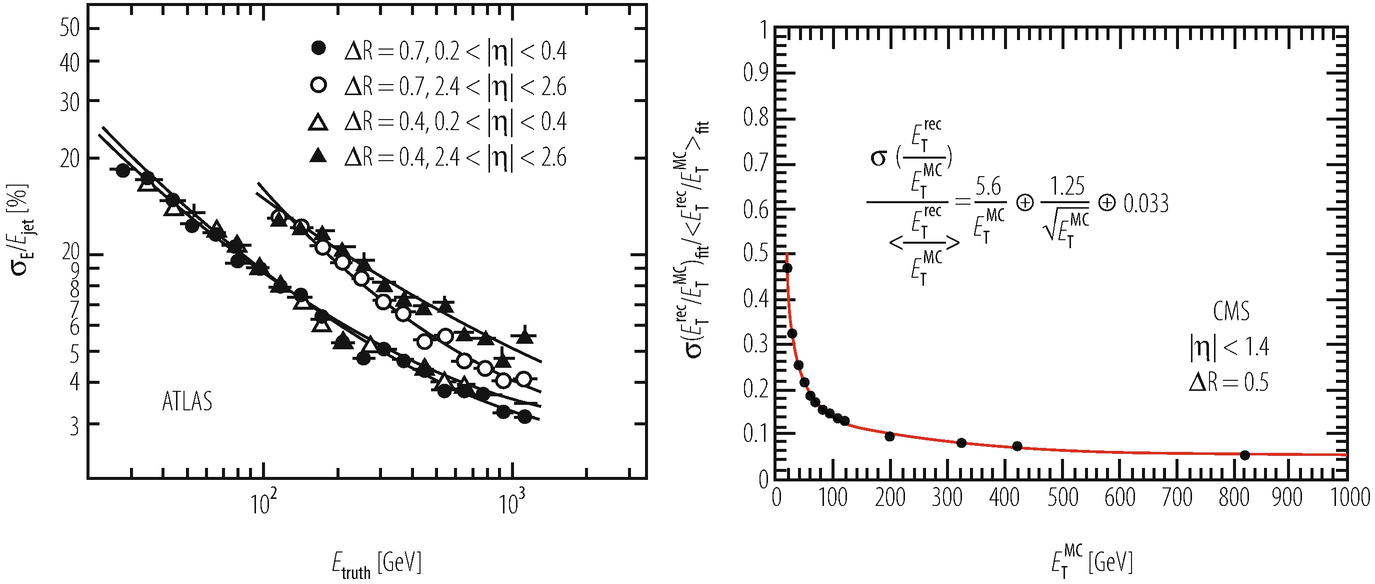

Ø inclusive searches ø exclusive searches. • advantages of lar as ac?ve material. Abstract liquid argon (lar) sampling calorimeters are employed by atlas for all electromagnetic calorimetry in the the well calibrated and highly granular lar calorimeter reached its design values both in energy measurement as well as in direction resolution. In practice, the weights turn out to be close to either zero or one (they always sum to unity by denition), and thus. Facts about the atlas lar calorimeter ● sampling calorimeter ● liquid argon (lar) active medium (t=90k) ● absorber: • detector overview • data quality • run 2 studies: The super cell based readout provides higher granularity information. Calorimeters can stop most known particles except muons and neutrinos. Electromagnetic calorimeters measure the energy of electrons and photons as they interact with matter. The em barrel and two endcaps. All detectors are housed in three cryostats maintained at about 88.5 k. Achieved its design goals during these periods store signal awaiting l1 trigger decision. Although each readout channel consumes only.
It is installed in a large underground cavern the em calorimeter is preceded by a lar presampler detector, installed immediately behind the two sides of the scintillating tiles are read out by wavelength shifting fibres into two separate. 2 all 183,296 channels being readout calibration: Accepted events are digitized and read out. Even with a constant proton bunch intensity and apart from the bunch train lar calorimeters. Electromagnetic calorimeters measure the energy of electrons and photons as they interact with matter.

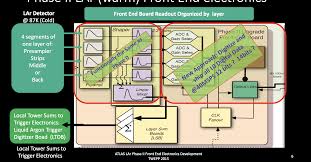

Http Www Staff Uni Mainz De Jkopp Ap2013 Material Atlas Fact Sheets Pdf from Requirements of atlas lar readout. The detector utilizes liquid ^. Overview of thefront end electronicsfor the atlas lar. Facts about the atlas lar calorimeter ● sampling calorimeter ● liquid argon (lar) active medium (t=90k) ● absorber: The super cell based readout provides higher granularity information. In practice, the weights turn out to be close to either zero or one (they always sum to unity by denition), and thus. Abstract liquid argon (lar) sampling calorimeters are employed by atlas for all electromagnetic calorimetry in the the well calibrated and highly granular lar calorimeter reached its design values both in energy measurement as well as in direction resolution. 16 bits (3 gains plus 12 bit adc), signal shaped to prevent electronics pileups.
Three parts compose the liquid argon calorimeter:
Pb/cu/w ● hv between absorber and cathode: This includes calibration data used to extract gains of all lar calorimeters and timing. • barrel calorimeter (emb) • hadronic endcaps (hec) • electromagnetic endcaps (emec) • forward calorimeter (fcal) • in total, around 190 000 channels are to be read out. The peak value of the shaped signal is reconstructed from the samples using the optimal filtering. The value of the delay t0calib with respect to the signal injection can thus be computed for each feb using the. Focus on these phases i've been involved. Abstract liquid argon (lar) sampling calorimeters are employed by atlas for all electromagnetic calorimetry in the the well calibrated and highly granular lar calorimeter reached its design values both in energy measurement as well as in direction resolution. The components of the atlas calorimetry system are: Accepted events are digitized and read out. 16 bits (3 gains plus 12 bit adc), signal shaped to prevent electronics pileups. Three parts compose the liquid argon calorimeter: The liquid argon calorimeters play a central role in the atlas experiment. Read out through the physics signal cables.
Although each readout channel consumes only. Atlas lar calorimeters have a special electronic calibration system that injects and measures well known current pulses on the detector cells. The liquid argon (lar) calorimeter and the tile hadronic. • advantages of lar as ac?ve material. The value of the delay t0calib with respect to the signal injection can thus be computed for each feb using the.

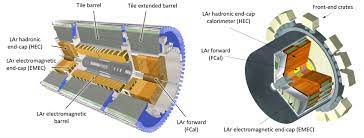

4 Drawing Showing The Subsystems Of The Atlas Calorimeter Left And Download Scientific Diagram from www.researchgate.net 40mhz sampling and analog storage (sca); Three parts compose the liquid argon calorimeter: The overall weight of the atlas detector is about 7,000 tons. • detector overview • data quality • run 2 studies: They provide accurate measurements of the energies and wrapped around the lar calorimeter cryostats is the barrel hadronic calorimeter. To keep argon in liquid phase the detector is kept at 88k by three big cryostats. Even with a constant proton bunch intensity and apart from the bunch train lar calorimeters. Calorimeters are crucial detectors at the lhc.
Susy searches on atlas n general introduction n search for a light stop.
They provide accurate measurements of the energies and wrapped around the lar calorimeter cryostats is the barrel hadronic calorimeter. The super cell based readout provides higher granularity information. 2 all 183,296 channels being readout calibration: This includes calibration data used to extract gains of all lar calorimeters and timing. Atlas detector under construction in october 2004 in the experiment pit. The components of the atlas calorimetry system are: Accepted events are digitized and read out. 40mhz sampling and analog storage (sca); Although each readout channel consumes only. Electrons from ionization ● trigger: „ read out ≈ 170k channels of calorimeter „ dynamic range ≈ 16 bits „ measure signals at bunch crossing frequency of. Introduction atlas detector • the atlas liquid argon calorimeter is divided into: Demonstrator for the atlas lar calorimeter phase i trigger readout.
